AnnotationBeanDefinitionReader

  AnnotationBeanDefinitionReader

==============================

#### AnnotationBeanDefinitionReader()
  1. 这一章我们讲的是AnnotationBeanDefinitionReader,
  2. 在spring的AnnotationConfigApplicationContext中你进去就会有三个构造器
/**
 * Create a new AnnotationConfigApplicationContext that needs to be populated
 * through {@link #register} calls and then manually {@linkplain #refresh refreshed}.
 */
public AnnotationConfigApplicationContext() {
    this.reader = new AnnotatedBeanDefinitionReader(this);
    this.scanner = new ClassPathBeanDefinitionScanner(this);
}
/**
 * Create a new AnnotationConfigApplicationContext with the given DefaultListableBeanFactory.
 * @param beanFactory the DefaultListableBeanFactory instance to use for this context
 */
public AnnotationConfigApplicationContext(DefaultListableBeanFactory beanFactory) {
    super(beanFactory);
    this.reader = new AnnotatedBeanDefinitionReader(this);
    this.scanner = new ClassPathBeanDefinitionScanner(this);
}
/**
 * Create a new AnnotationConfigApplicationContext, deriving bean definitions
 * from the given component classes and automatically refreshing the context.
 * @param componentClasses one or more component classes — for example,
 * {@link Configuration @Configuration} classes
 */
public AnnotationConfigApplicationContext(Class<?>... componentClasses) {
    this();
    register(componentClasses);
    refresh();
}
  1. 在这三个构造器中我们首先调用的是第一个无参构造器,它首先会去this.reader = new AnnotatedBeanDefinitionReader(this);
  2. 代表它会创建一个AnnotatedBeanDefinitionReader对象出来,我们进入到这个类中:
/**
     * Create a new {@code AnnotatedBeanDefinitionReader} for the given registry.
     * <p>If the registry is {@link EnvironmentCapable}, e.g. is an {@code ApplicationContext},
     * the {@link Environment} will be inherited, otherwise a new
     * {@link StandardEnvironment} will be created and used.
     * @param registry the {@code BeanFactory} to load bean definitions into,
     * in the form of a {@code BeanDefinitionRegistry}
     * @see #AnnotatedBeanDefinitionReader(BeanDefinitionRegistry, Environment)
     * @see #setEnvironment(Environment)
     */
    /*
    1.读取加了注解的类,并把他变为BeanDefinition
    2.简单理解为它是一个渲染器
    3.它除了有渲染的功能还有Register的功能
    4.接收程序员自定义的beanName
     */
    public AnnotatedBeanDefinitionReader(BeanDefinitionRegistry registry) {
        this(registry, getOrCreateEnvironment(registry));
    }
  1. 一进去就是AnnotatedBeanDefinitionReader的有参构造器。至于它的作用都在上述代码中有解释。
  2. 先给个大概本章节要讲的是什么内容:
public void refresh() throws BeansException, IllegalStateException {
   synchronized (this.startupShutdownMonitor) {
      // Prepare this context for refreshing. 准备此上下文以进行刷新。
      prepareRefresh();
      // Tell the subclass to refresh the internal bean factory. 告诉子类刷新内部 Bean 工厂。
      ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
      // Prepare the bean factory for use in this context. 准备 Bean 工厂以在此上下文中使用。
      prepareBeanFactory(beanFactory);
      try {
         // Allows post-processing of the bean factory in context subclasses. 允许在上下文子类中对 Bean 工厂进行后处理。
         postProcessBeanFactory(beanFactory);
         /*Invoke factory processors registered as beans in the context.
         调用在上下文中注册为 Bean 的BeanFactoryPostProcessor。
         1.执行完程序需要提供的BeanFactoryPostProcessor之后会调用clearMetadataCache
         2.会根据是否冻结去判断是否要获取到最新的BeanDefinition
         3.如果没有冻结那么则会去进行合并动作(beanDefinitionMap和MergeBeanDefinitionMap)
         4.注意:这个方法会将当前用户自定义注册的BeanFactoryPostProcessor进行实例化,并且进行合并操作,但是只会进行一次合并,为什么呢?
         5.可以看到在AbstractBeanFactory中的getMergedLocalBeanDefinition()方法中会当前的BD进行判断,是否需要进行合并
         6.那么第一次进来他肯定是需要合并的,但是后面就不会有合并的动作了
         7.而我们自己实现了BeanFactoryPostProcessor接口并且取出一个Bean对其进行了修改的话,在这个方法是不生效的
          */
         invokeBeanFactoryPostProcessors(beanFactory);
         System.out.println("....");
         /*Register bean processors that intercept bean creation.
         注册拦截 Bean 创建的 Bean 处理器。
         1.获取BeanDefinition
         2.由于前面invokeBeanFactoryPostProcessors的判断在这里会获取到最新的BD在这里就可以进行合并
          */
         registerBeanPostProcessors(beanFactory);
         // Initialize message source for this context. 初始化此上下文的消息源。
         initMessageSource();
         // Initialize event multicaster for this context. 为此上下文初始化事件多播程序。
         initApplicationEventMulticaster();
         // Initialize other special beans in specific context subclasses. 在特定上下文子类中初始化其他特殊 bean。
         onRefresh();
         // Check for listener beans and register them. 检查侦听器豆并注册它们。
         registerListeners();
         // Instantiate all remaining (non-lazy-init) singletons. 实例化所有剩余(非惰性初始化)单例。
         finishBeanFactoryInitialization(beanFactory);
         // Last step: publish corresponding event. 最后一步:发布相应的事件。
         finishRefresh();
      }
      catch (BeansException ex) {
         if (logger.isWarnEnabled()) {
            logger.warn("Exception encountered during context initialization - " + "cancelling refresh attempt: " + ex);
         }
         // Destroy already created singletons to avoid dangling resources. 销毁已创建的单例以避免悬而未决的资源。
         destroyBeans();
         // Reset 'active' flag. 重置“活动”标志。
         cancelRefresh(ex);
         // Propagate exception to caller. 将异常传播给调用方。
         throw ex;
      }
      finally {
         // Reset common introspection caches in Spring's core, since we
         // might not ever need metadata for singleton beans anymore...
         // 重置 Spring 核心中的常见内省缓存,因为我们可能不再需要单例 bean 的元数据......
         resetCommonCaches();
      }
   }
}
  1. 可以看到这个是spring中重要的refresh()方法,我们现在讲的是只到注册自定义bean的前面也就是下面这块代码:
prepareRefresh();
// Tell the subclass to refresh the internal bean factory. 告诉子类刷新内部 Bean 工厂。
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Prepare the bean factory for use in this context. 准备 Bean 工厂以在此上下文中使用。
prepareBeanFactory(beanFactory);
try {
    // Allows post-processing of the bean factory in context subclasses. 允许在上下文子类中对 Bean 工厂进行后处理。
    postProcessBeanFactory(beanFactory);
    /*Invoke factory processors registered as beans in the context.
    调用在上下文中注册为 Bean 的BeanFactoryPostProcessor。
    1.执行完程序需要提供的BeanFactoryPostProcessor之后会调用clearMetadataCache
    2.会根据是否冻结去判断是否要获取到最新的BeanDefinition
    3.如果没有冻结那么则会去进行合并动作(beanDefinitionMap和MergeBeanDefinitionMap)
    4.注意:这个方法会将当前用户自定义注册的BeanFactoryPostProcessor进行实例化,并且进行合并操作,但是只会进行一次合并,为什么呢?
    5.可以看到在AbstractBeanFactory中的getMergedLocalBeanDefinition()方法中会当前的BD进行判断,是否需要进行合并
    6.那么第一次进来他肯定是需要合并的,但是后面就不会有合并的动作了
    7.而我们自己实现了BeanFactoryPostProcessor接口并且取出一个Bean对其进行了修改的话,在这个方法是不生效的
     */
    invokeBeanFactoryPostProcessors(beanFactory);

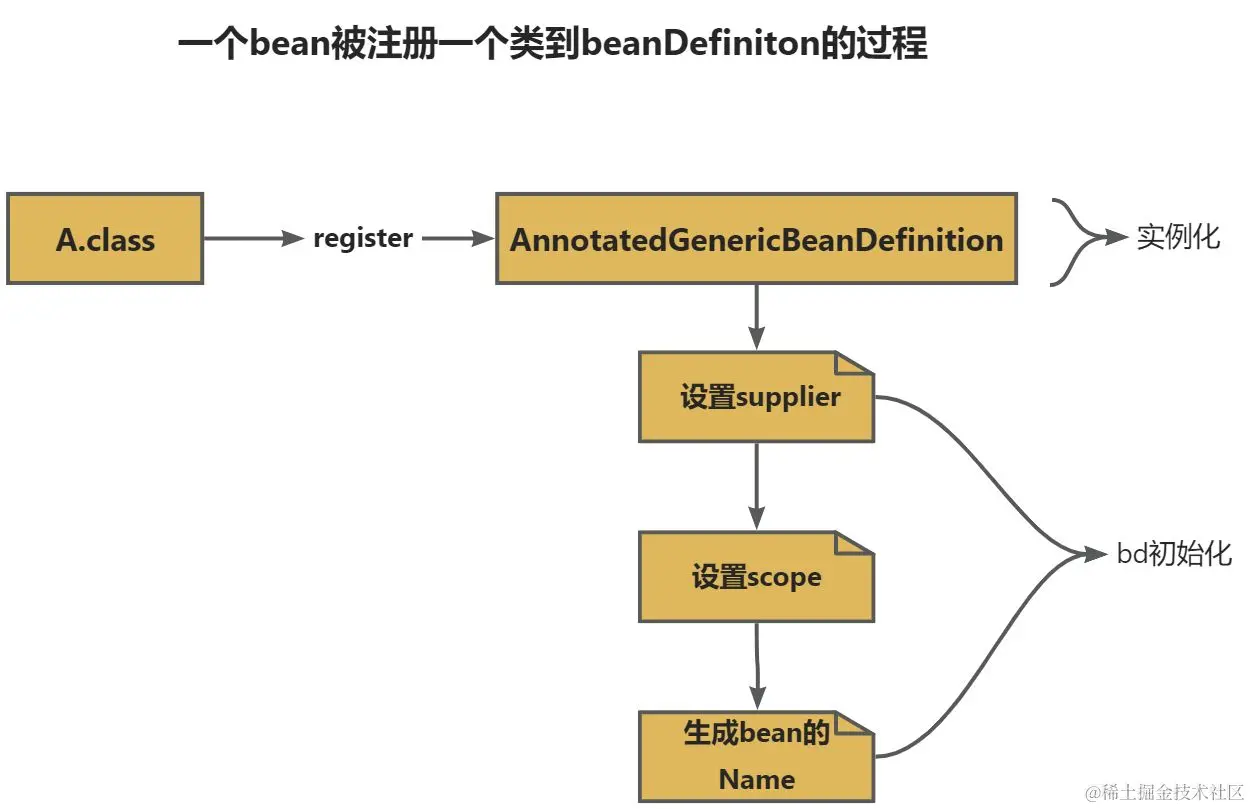

  1. 注册bean的流程:

AnnotationBeanDefinitionReader

  1. 下面来说beanName的生成策略。
  2. 首先我们看到在AnnotationConfigApplicationContext类中有一个方法setBeanNameGenerator(BeanNameGenerator beanNameGenerator)BeanName的生成策略。
  3. 在方法中有一个reader和一个scanner:
  4. 这两个虽然都是BeanNameGenerator但是有着本质区别:reader是给定一个自定义的生成beanName策略器,scanner同样也是给定一个自定义的生成beanName策略器但是是站在包扫描的角度来考虑的。
public void setBeanNameGenerator(BeanNameGenerator beanNameGenerator) {
        //给reader一个自定义的生成beanName策略器
        this.reader.setBeanNameGenerator(beanNameGenerator);
        //给scanner(扫描仪)一个自定义的生成beanName策略器
        this.scanner.setBeanNameGenerator(beanNameGenerator);
        getBeanFactory().registerSingleton(AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR, beanNameGenerator);
    }
  1. 我可以点进reader看一下:
private final AnnotatedBeanDefinitionReader reader;
  1. 发现它是一个私有类型并且final修饰的一个变量,这里就可以说明对于spring而言,它在生成beanName的时候只能是自己spring内部给予生成策略,来完成BeanName的生成工作。
  2. 但是这样子讲也是有点不太明确,因为你会发现它是有入参的,说明你还是可以完成对beanName自定义话的生成策略的,我们来看,它要求传入的类型是一个BeanNameGenerator类型的入参:
public interface BeanNameGenerator {
    /**
     * Generate a bean name for the given bean definition.
     * @param definition the bean definition to generate a name for
     * @param registry the bean definition registry that the given definition
     * is supposed to be registered with
     * @return the generated bean name
     */
    String generateBeanName(BeanDefinition definition, BeanDefinitionRegistry registry);
}
  1. 那么说明在生成自定义BeanName的生成策略的时候,我们只需要实现该接口中的generateBeanNaem()方法就可以完成对于BeanName的自定义生成了。
public class LkpBeanNameGenerator implements BeanNameGenerator {
    @Override
    public String generateBeanName(BeanDefinition definition, BeanDefinitionRegistry registry) {
        return "ss";
    }
}
  1. 大致是上面这样子的代码实现。
  2. 然后我们再点进去到reader后面的setBeanNameGenerator来看:
public void setBeanNameGenerator(@Nullable BeanNameGenerator beanNameGenerator) {
    this.beanNameGenerator = (beanNameGenerator != null ? beanNameGenerator : AnnotationBeanNameGenerator.INSTANCE);
}
  1. 首先是this.beanNameGenerator我们点击它会发现它的字段其实已经设置好了:
private BeanNameGenerator beanNameGenerator = AnnotationBeanNameGenerator.INSTANCE;
  1. 到这里就说明如果没有传入自定义的BeanName生成策略的话默认就是AnnotationBeanNameGenerator.INSTANCE。
  2. 并且在后面也判断,如果当前传入的beanNameGenerator为null的话则使用AnnotationBeanNameGenerator.INSTANCE。
  3. 而第二个scanner扫描器,其实它的作用是为了可以让第三方中间件进行扩展扫描的功能并且将扫描的类转化为BeanDefinition,比如:@MapperScanner()
  4. 那他的源码在:
invokeBeanFactoryPostProcessors(beanFactory);
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
        PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

        // Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
        // (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
        if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
            beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
            beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
        }
    }
public static void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {
        // Invoke BeanDefinitionRegistryPostProcessors first, if any.
        // 首先调用 BeanDefinitionRegistryPostProcessor(如果有)。
        Set<String> processedBeans = new HashSet<>();

        if (beanFactory instanceof BeanDefinitionRegistry) {
            BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
            List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
            List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();
            for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
                if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
                    BeanDefinitionRegistryPostProcessor registryProcessor = (BeanDefinitionRegistryPostProcessor) postProcessor;
                    registryProcessor.postProcessBeanDefinitionRegistry(registry);
                    registryProcessors.add(registryProcessor);
                }
                else {
                    regularPostProcessors.add(postProcessor);
                }
            }

            // Do not initialize FactoryBeans here: We need to leave all regular beans
            // uninitialized to let the bean factory post-processors apply to them!
            // Separate between BeanDefinitionRegistryPostProcessors that implement
            // PriorityOrdered, Ordered, and the rest.
            List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();

            // First, invoke the BeanDefinitionRegistryPostProcessors that implement PriorityOrdered.
            String[] postProcessorNames =
                    beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
            for (String ppName : postProcessorNames) {
                if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
                    currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                    processedBeans.add(ppName);
                }
            }
            sortPostProcessors(currentRegistryProcessors, beanFactory);
            registryProcessors.addAll(currentRegistryProcessors);
            //完成扫描
            invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
            currentRegistryProcessors.clear();

            // Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
            postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
            for (String ppName : postProcessorNames) {
                if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
                    currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                    processedBeans.add(ppName);
                }
            }
            sortPostProcessors(currentRegistryProcessors, beanFactory);
            registryProcessors.addAll(currentRegistryProcessors);
            invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
            currentRegistryProcessors.clear();

            // Finally, invoke all other BeanDefinitionRegistryPostProcessors until no further ones appear.
            boolean reiterate = true;
            while (reiterate) {
                reiterate = false;
                postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
                for (String ppName : postProcessorNames) {
                    if (!processedBeans.contains(ppName)) {
                        currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                        processedBeans.add(ppName);
                        reiterate = true;
                    }
                }
                sortPostProcessors(currentRegistryProcessors, beanFactory);
                registryProcessors.addAll(currentRegistryProcessors);
                invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
                currentRegistryProcessors.clear();
            }

            // Now, invoke the postProcessBeanFactory callback of all processors handled so far.
            // 现在,调用到目前为止处理的所有处理器的 postProcessBeanFactory 回调。
            invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
            invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
        }
        else {
            // Invoke factory processors registered with the context instance.
            // 调用在上下文实例中注册的工厂处理器。
            invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
        }

        // Do not initialize FactoryBeans here: We need to leave all regular beans
        // uninitialized to let the bean factory post-processors apply to them!
        // 不要在这里初始化 FactoryBeans:我们需要让所有常规 bean 未初始化,让 bean Factory 后处理器应用于它们!
        String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);
        // Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
        // Ordered, and the rest.
        // 在实现 PriorityOrdered、Ordered 和其余处理器的 BeanFactoryPostProcessor 之间分开。
        List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
        List<String> orderedPostProcessorNames = new ArrayList<>();
        List<String> nonOrderedPostProcessorNames = new ArrayList<>();
        for (String ppName : postProcessorNames) {
            if (processedBeans.contains(ppName)) {
                // skip - already processed in first phase above
                // 跳过 - 已在上述第一阶段处理
            }
            else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
                priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
            }
            else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
                orderedPostProcessorNames.add(ppName);
            }
            else {
                nonOrderedPostProcessorNames.add(ppName);
            }
        }

        // First, invoke the BeanFactoryPostProcessors that implement PriorityOrdered.
        // 首先,调用实现 PriorityOrdered 的 BeanFactoryPostProcessor。
        sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
        invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

        // Next, invoke the BeanFactoryPostProcessors that implement Ordered.
        // 接下来,调用实现 Ordered 的 BeanFactoryPostProcessor。
        List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
        for (String postProcessorName : orderedPostProcessorNames) {
            orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
        }
        sortPostProcessors(orderedPostProcessors, beanFactory);
        invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

        // Finally, invoke all other BeanFactoryPostProcessors.
        // 最后,调用所有其他 BeanFactoryPostProcessor。
        List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
        for (String postProcessorName : nonOrderedPostProcessorNames) {
            nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
        }
        //这个方法执行程序员自定义的BeanFactoryPostProcessor
        invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);

        // Clear cached merged bean definitions since the post-processors might have
        // modified the original metadata, e.g. replacing placeholders in values...
        // 清除缓存的合并Bean定义(mergeBDMap)
        // 清除allBeanNamesByType缓存
        // 因为后处理器可能已经修改了原始元数据,例如替换值中的占位符......
        beanFactory.clearMetadataCache();
    }
private static void invokeBeanDefinitionRegistryPostProcessors(
            Collection<? extends BeanDefinitionRegistryPostProcessor> postProcessors,
            BeanDefinitionRegistry registry) {
        for (BeanDefinitionRegistryPostProcessor postProcessor : postProcessors) {
            postProcessor.postProcessBeanDefinitionRegistry(registry);
        }
    }
@Override
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
    int registryId = System.identityHashCode(registry);
    if (this.registriesPostProcessed.contains(registryId)) {
        throw new IllegalStateException(
                "postProcessBeanDefinitionRegistry already called on this post-processor against " + registry);
    }
    if (this.factoriesPostProcessed.contains(registryId)) {
        throw new IllegalStateException(
                "postProcessBeanFactory already called on this post-processor against " + registry);
    }
    this.registriesPostProcessed.add(registryId);

    processConfigBeanDefinitions(registry);
}
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
        List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
        String[] candidateNames = registry.getBeanDefinitionNames();

        for (String beanName : candidateNames) {
            BeanDefinition beanDef = registry.getBeanDefinition(beanName);
            if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
                if (logger.isDebugEnabled()) {
                    logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
                }
            }
            else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
                configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
            }
        }

        // Return immediately if no @Configuration classes were found
        if (configCandidates.isEmpty()) {
            return;
        }

        // Sort by previously determined @Order value, if applicable
        configCandidates.sort((bd1, bd2) -> {
            int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
            int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
            return Integer.compare(i1, i2);
        });

        // Detect any custom bean name generation strategy supplied through the enclosing application context
        SingletonBeanRegistry sbr = null;
        if (registry instanceof SingletonBeanRegistry) {
            sbr = (SingletonBeanRegistry) registry;
            if (!this.localBeanNameGeneratorSet) {
                BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
                if (generator != null) {
                    this.componentScanBeanNameGenerator = generator;
                    this.importBeanNameGenerator = generator;
                }
            }
        }

        if (this.environment == null) {
            this.environment = new StandardEnvironment();
        }

        // Parse each @Configuration class
        ConfigurationClassParser parser = new ConfigurationClassParser(
                this.metadataReaderFactory, this.problemReporter, this.environment,
                this.resourceLoader, this.componentScanBeanNameGenerator, registry);

        Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
        Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
        do {
            parser.parse(candidates);
            parser.validate();

            Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
            configClasses.removeAll(alreadyParsed);

            // Read the model and create bean definitions based on its content
            if (this.reader == null) {
                this.reader = new ConfigurationClassBeanDefinitionReader(
                        registry, this.sourceExtractor, this.resourceLoader, this.environment,
                        this.importBeanNameGenerator, parser.getImportRegistry());
            }
            this.reader.loadBeanDefinitions(configClasses);
            alreadyParsed.addAll(configClasses);

            candidates.clear();
            if (registry.getBeanDefinitionCount() > candidateNames.length) {
                String[] newCandidateNames = registry.getBeanDefinitionNames();
                Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
                Set<String> alreadyParsedClasses = new HashSet<>();
                for (ConfigurationClass configurationClass : alreadyParsed) {
                    alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
                }
                for (String candidateName : newCandidateNames) {
                    if (!oldCandidateNames.contains(candidateName)) {
                        BeanDefinition bd = registry.getBeanDefinition(candidateName);
                        if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
                                !alreadyParsedClasses.contains(bd.getBeanClassName())) {
                            candidates.add(new BeanDefinitionHolder(bd, candidateName));
                        }
                    }
                }
                candidateNames = newCandidateNames;
            }
        }
        while (!candidates.isEmpty());

        // Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
        if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
            sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
        }

        if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
            // Clear cache in externally provided MetadataReaderFactory; this is a no-op
            // for a shared cache since it'll be cleared by the ApplicationContext.
            ((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
        }
    }
public void parse(Set<BeanDefinitionHolder> configCandidates) {
        for (BeanDefinitionHolder holder : configCandidates) {
            BeanDefinition bd = holder.getBeanDefinition();
            try {
                if (bd instanceof AnnotatedBeanDefinition) {
                    parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
                }
                else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
                    parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
                }
                else {
                    parse(bd.getBeanClassName(), holder.getBeanName());
                }
            }
            catch (BeanDefinitionStoreException ex) {
                throw ex;
            }
            catch (Throwable ex) {
                throw new BeanDefinitionStoreException(
                        "Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
            }
        }

        this.deferredImportSelectorHandler.process();
    }
protected final void parse(AnnotationMetadata metadata, String beanName) throws IOException {
        processConfigurationClass(new ConfigurationClass(metadata, beanName), DEFAULT_EXCLUSION_FILTER);
    }
protected void processConfigurationClass(ConfigurationClass configClass, Predicate<String> filter) throws IOException {
        if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
            return;
        }
        ConfigurationClass existingClass = this.configurationClasses.get(configClass);
        if (existingClass != null) {
            if (configClass.isImported()) {
                if (existingClass.isImported()) {
                    existingClass.mergeImportedBy(configClass);
                }
                // Otherwise ignore new imported config class; existing non-imported class overrides it.
                return;
            }
            else {
                // Explicit bean definition found, probably replacing an import.
                // Let's remove the old one and go with the new one.
                this.configurationClasses.remove(configClass);
                this.knownSuperclasses.values().removeIf(configClass::equals);
            }
        }

        // Recursively process the configuration class and its superclass hierarchy.
        SourceClass sourceClass = asSourceClass(configClass, filter);
        do {
            sourceClass = doProcessConfigurationClass(configClass, sourceClass, filter);
        }
        while (sourceClass != null);

        this.configurationClasses.put(configClass, configClass);
    }
@Nullable
    protected final SourceClass doProcessConfigurationClass(
            ConfigurationClass configClass,
            SourceClass sourceClass,
            Predicate<String> filter) throws IOException {
        if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
            // Recursively process any member (nested) classes first
            processMemberClasses(configClass, sourceClass, filter);
        }

        // Process any @PropertySource annotations
        for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
                sourceClass.getMetadata(), PropertySources.class,
                org.springframework.context.annotation.PropertySource.class)) {
            if (this.environment instanceof ConfigurableEnvironment) {
                processPropertySource(propertySource);
            }
            else {
                logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
                        "]. Reason: Environment must implement ConfigurableEnvironment");
            }
        }

        // Process any @ComponentScan annotations 处理任何@ComponentScan注释
        Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
                sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
        if (!componentScans.isEmpty() &&
                !this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
            for (AnnotationAttributes componentScan : componentScans) {
                // The config class is annotated with @ComponentScan -> perform the scan immediately
                Set<BeanDefinitionHolder> scannedBeanDefinitions = this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
                // Check the set of scanned definitions for any further config classes and parse recursively if needed
                for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
                    BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
                    if (bdCand == null) {
                        bdCand = holder.getBeanDefinition();
                    }
                    if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
                        parse(bdCand.getBeanClassName(), holder.getBeanName());
                    }
                }
            }
        }

        // Process any @Import annotations
        processImports(configClass, sourceClass, getImports(sourceClass), filter, true);

        // Process any @ImportResource annotations
        AnnotationAttributes importResource =
                AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
        if (importResource != null) {
            String[] resources = importResource.getStringArray("locations");
            Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
            for (String resource : resources) {
                String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
                configClass.addImportedResource(resolvedResource, readerClass);
            }
        }

        // Process individual @Bean methods
        Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
        for (MethodMetadata methodMetadata : beanMethods) {
            configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
        }

        // Process default methods on interfaces
        processInterfaces(configClass, sourceClass);

        // Process superclass, if any
        if (sourceClass.getMetadata().hasSuperClass()) {
            String superclass = sourceClass.getMetadata().getSuperClassName();
            if (superclass != null && !superclass.startsWith("java") &&
                    !this.knownSuperclasses.containsKey(superclass)) {
                this.knownSuperclasses.put(superclass, configClass);
                // Superclass found, return its annotation metadata and recurse
                return sourceClass.getSuperClass();
            }
        }

        // No superclass -> processing is complete
        return null;
    }
  1. 好的我们终于到达了spring完成scanner的地方了,就是在这里spring完成了在项目中所有实现了@ComponentScan注释的类,完成扫描。
  2. 我们再看,由于上面的代码扫描出来了componentScans,再下面的循环中调用了parse()方法
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
                sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class
        );
        if (!componentScans.isEmpty() && !this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
            for (AnnotationAttributes componentScan : componentScans) {
                // The config class is annotated with @ComponentScan -> perform the scan immediately
                Set<BeanDefinitionHolder> scannedBeanDefinitions = this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
                // Check the set of scanned definitions for any further config classes and parse recursively if needed
                for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
                    BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
                    if (bdCand == null) {
                        bdCand = holder.getBeanDefinition();
                    }
                    if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
                        parse(bdCand.getBeanClassName(), holder.getBeanName());
                    }
                }
            }
        }
  1. 我进去看一下子:
public Set<BeanDefinitionHolder> parse(AnnotationAttributes componentScan, String declaringClass) {
        ClassPathBeanDefinitionScanner scanner = new ClassPathBeanDefinitionScanner(
                this.registry,
                componentScan.getBoolean("useDefaultFilters"),
                this.environment,
                this.resourceLoader
        );

        Class<? extends BeanNameGenerator> generatorClass = componentScan.getClass("nameGenerator");
        boolean useInheritedGenerator = (BeanNameGenerator.class == generatorClass);
        //给这个scanner(扫描器)添加一个生成名字的策略
        scanner.setBeanNameGenerator(
                useInheritedGenerator
                ?
                this.beanNameGenerator
                :
                BeanUtils.instantiateClass(generatorClass)
        );

        ScopedProxyMode scopedProxyMode = componentScan.getEnum("scopedProxy");
        if (scopedProxyMode != ScopedProxyMode.DEFAULT) {
            scanner.setScopedProxyMode(scopedProxyMode);
        }
        else {
            Class<? extends ScopeMetadataResolver> resolverClass = componentScan.getClass("scopeResolver");
            scanner.setScopeMetadataResolver(BeanUtils.instantiateClass(resolverClass));
        }

        scanner.setResourcePattern(componentScan.getString("resourcePattern"));

        for (AnnotationAttributes filter : componentScan.getAnnotationArray("includeFilters")) {
            for (TypeFilter typeFilter : typeFiltersFor(filter)) {
                scanner.addIncludeFilter(typeFilter);
            }
        }
        for (AnnotationAttributes filter : componentScan.getAnnotationArray("excludeFilters")) {
            for (TypeFilter typeFilter : typeFiltersFor(filter)) {
                scanner.addExcludeFilter(typeFilter);
            }
        }

        boolean lazyInit = componentScan.getBoolean("lazyInit");
        if (lazyInit) {
            scanner.getBeanDefinitionDefaults().setLazyInit(true);
        }

        Set<String> basePackages = new LinkedHashSet<>();
        String[] basePackagesArray = componentScan.getStringArray("basePackages");
        for (String pkg : basePackagesArray) {
            String[] tokenized = StringUtils.tokenizeToStringArray(this.environment.resolvePlaceholders(pkg),
                    ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
            Collections.addAll(basePackages, tokenized);
        }
        for (Class<?> clazz : componentScan.getClassArray("basePackageClasses")) {
            basePackages.add(ClassUtils.getPackageName(clazz));
        }
        if (basePackages.isEmpty()) {
            basePackages.add(ClassUtils.getPackageName(declaringClass));
        }

        scanner.addExcludeFilter(new AbstractTypeHierarchyTraversingFilter(false, false) {
            @Override
            protected boolean matchClassName(String className) {
                return declaringClass.equals(className);
            }
        });
        return scanner.doScan(StringUtils.toStringArray(basePackages));
    }
  1. 它这里的意思是你有没有自定义一个BeanName的生成器,如果没有就用我默认的。
  2. 我们看到在@ComponentScan注解中:
/*
 * Copyright 2002-2020 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.context.annotation;

import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Repeatable;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

import org.springframework.beans.factory.support.BeanNameGenerator;
import org.springframework.core.annotation.AliasFor;
import org.springframework.core.type.filter.TypeFilter;

/**
 * Configures component scanning directives for use with @{@link Configuration} classes.
 * Provides support parallel with Spring XML's {@code <context:component-scan>} element.
 *
 * <p>Either {@link #basePackageClasses} or {@link #basePackages} (or its alias
 * {@link #value}) may be specified to define specific packages to scan. If specific
 * packages are not defined, scanning will occur from the package of the
 * class that declares this annotation.
 *
 * <p>Note that the {@code <context:component-scan>} element has an
 * {@code annotation-config} attribute; however, this annotation does not. This is because
 * in almost all cases when using {@code @ComponentScan}, default annotation config
 * processing (e.g. processing {@code @Autowired} and friends) is assumed. Furthermore,
 * when using {@link AnnotationConfigApplicationContext}, annotation config processors are
 * always registered, meaning that any attempt to disable them at the
 * {@code @ComponentScan} level would be ignored.
 *
 * <p>See {@link Configuration @Configuration}'s Javadoc for usage examples.
 *
 * @author Chris Beams
 * @author Juergen Hoeller
 * @author Sam Brannen
 * @since 3.1
 * @see Configuration
 */
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Repeatable(ComponentScans.class)
public @interface ComponentScan {

    /**
     * Alias for {@link #basePackages}.
     * <p>Allows for more concise annotation declarations if no other attributes
     * are needed &mdash; for example, {@code @ComponentScan("org.my.pkg")}
     * instead of {@code @ComponentScan(basePackages = "org.my.pkg")}.
     */
    @AliasFor("basePackages")
    String[] value() default {};

    /**
     * Base packages to scan for annotated components.
     * <p>{@link #value} is an alias for (and mutually exclusive with) this
     * attribute.
     * <p>Use {@link #basePackageClasses} for a type-safe alternative to
     * String-based package names.
     */
    @AliasFor("value")
    String[] basePackages() default {};

    /**
     * Type-safe alternative to {@link #basePackages} for specifying the packages
     * to scan for annotated components. The package of each class specified will be scanned.
     * <p>Consider creating a special no-op marker class or interface in each package
     * that serves no purpose other than being referenced by this attribute.
     */
    Class<?>[] basePackageClasses() default {};

    /**
     * The {@link BeanNameGenerator} class to be used for naming detected components
     * within the Spring container.
     * <p>The default value of the {@link BeanNameGenerator} interface itself indicates
     * that the scanner used to process this {@code @ComponentScan} annotation should
     * use its inherited bean name generator, e.g. the default
     * {@link AnnotationBeanNameGenerator} or any custom instance supplied to the
     * application context at bootstrap time.
     * @see AnnotationConfigApplicationContext#setBeanNameGenerator(BeanNameGenerator)
     * @see AnnotationBeanNameGenerator
     * @see FullyQualifiedAnnotationBeanNameGenerator
     */
    Class<? extends BeanNameGenerator> nameGenerator() default BeanNameGenerator.class;

    /**
     * The {@link ScopeMetadataResolver} to be used for resolving the scope of detected components.
     */
    Class<? extends ScopeMetadataResolver> scopeResolver() default AnnotationScopeMetadataResolver.class;

    /**
     * Indicates whether proxies should be generated for detected components, which may be
     * necessary when using scopes in a proxy-style fashion.
     * <p>The default is defer to the default behavior of the component scanner used to
     * execute the actual scan.
     * <p>Note that setting this attribute overrides any value set for {@link #scopeResolver}.
     * @see ClassPathBeanDefinitionScanner#setScopedProxyMode(ScopedProxyMode)
     */
    ScopedProxyMode scopedProxy() default ScopedProxyMode.DEFAULT;

    /**
     * Controls the class files eligible for component detection.
     * <p>Consider use of {@link #includeFilters} and {@link #excludeFilters}
     * for a more flexible approach.
     */
    String resourcePattern() default ClassPathScanningCandidateComponentProvider.DEFAULT_RESOURCE_PATTERN;

    /**
     * Indicates whether automatic detection of classes annotated with {@code @Component}
     * {@code @Repository}, {@code @Service}, or {@code @Controller} should be enabled.
     */
    boolean useDefaultFilters() default true;

    /**
     * Specifies which types are eligible for component scanning.
     * <p>Further narrows the set of candidate components from everything in {@link #basePackages}
     * to everything in the base packages that matches the given filter or filters.
     * <p>Note that these filters will be applied in addition to the default filters, if specified.
     * Any type under the specified base packages which matches a given filter will be included,
     * even if it does not match the default filters (i.e. is not annotated with {@code @Component}).
     * @see #resourcePattern()
     * @see #useDefaultFilters()
     */
    Filter[] includeFilters() default {};

    /**
     * Specifies which types are not eligible for component scanning.
     * @see #resourcePattern
     */
    Filter[] excludeFilters() default {};

    /**
     * Specify whether scanned beans should be registered for lazy initialization.
     * <p>Default is {@code false}; switch this to {@code true} when desired.
     * @since 4.1
     */
    boolean lazyInit() default false;


    /**
     * Declares the type filter to be used as an {@linkplain ComponentScan#includeFilters
     * include filter} or {@linkplain ComponentScan#excludeFilters exclude filter}.
     */
    @Retention(RetentionPolicy.RUNTIME)
    @Target({})
    @interface Filter {

        /**
         * The type of filter to use.
         * <p>Default is {@link FilterType#ANNOTATION}.
         * @see #classes
         * @see #pattern
         */
        FilterType type() default FilterType.ANNOTATION;

        /**
         * Alias for {@link #classes}.
         * @see #classes
         */
        @AliasFor("classes")
        Class<?>[] value() default {};

        /**
         * The class or classes to use as the filter.
         * <p>The following table explains how the classes will be interpreted
         * based on the configured value of the {@link #type} attribute.
         * <table border="1">
         * <tr><th>{@code FilterType}</th><th>Class Interpreted As</th></tr>
         * <tr><td>{@link FilterType#ANNOTATION ANNOTATION}</td>
         * <td>the annotation itself</td></tr>
         * <tr><td>{@link FilterType#ASSIGNABLE_TYPE ASSIGNABLE_TYPE}</td>
         * <td>the type that detected components should be assignable to</td></tr>
         * <tr><td>{@link FilterType#CUSTOM CUSTOM}</td>
         * <td>an implementation of {@link TypeFilter}</td></tr>
         * </table>
         * <p>When multiple classes are specified, <em>OR</em> logic is applied
         * &mdash; for example, "include types annotated with {@code @Foo} OR {@code @Bar}".
         * <p>Custom {@link TypeFilter TypeFilters} may optionally implement any of the
         * following {@link org.springframework.beans.factory.Aware Aware} interfaces, and
         * their respective methods will be called prior to {@link TypeFilter#match match}:
         * <ul>
         * <li>{@link org.springframework.context.EnvironmentAware EnvironmentAware}</li>
         * <li>{@link org.springframework.beans.factory.BeanFactoryAware BeanFactoryAware}
         * <li>{@link org.springframework.beans.factory.BeanClassLoaderAware BeanClassLoaderAware}
         * <li>{@link org.springframework.context.ResourceLoaderAware ResourceLoaderAware}
         * </ul>
         * <p>Specifying zero classes is permitted but will have no effect on component
         * scanning.
         * @since 4.2
         * @see #value
         * @see #type
         */
        @AliasFor("value")
        Class<?>[] classes() default {};

        /**
         * The pattern (or patterns) to use for the filter, as an alternative
         * to specifying a Class {@link #value}.
         * <p>If {@link #type} is set to {@link FilterType#ASPECTJ ASPECTJ},
         * this is an AspectJ type pattern expression. If {@link #type} is
         * set to {@link FilterType#REGEX REGEX}, this is a regex pattern
         * for the fully-qualified class names to match.
         * @see #type
         * @see #classes
         */
        String[] pattern() default {};

    }

}
  1. 有一个字段为nameGenerator(),默认为BeanNameGenerator.class,同时它做了类型限定必须是beanNameGenerator实现类。
  2. 说一下Spring的BeanName生成器的生成时机:
public AnnotationConfigApplicationContext(String... basePackages) {
    this();
    scan(basePackages);
    refresh();
}
public void refresh() throws BeansException, IllegalStateException {
        synchronized (this.startupShutdownMonitor) {
            // Prepare this context for refreshing. 准备此上下文以进行刷新。
            prepareRefresh();
            // Tell the subclass to refresh the internal bean factory. 告诉子类刷新内部 Bean 工厂。
            ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
            // Prepare the bean factory for use in this context. 准备 Bean 工厂以在此上下文中使用。
            prepareBeanFactory(beanFactory);
            try {
                // Allows post-processing of the bean factory in context subclasses. 允许在上下文子类中对 Bean 工厂进行后处理。
                postProcessBeanFactory(beanFactory);
                /*Invoke factory processors registered as beans in the context.
                调用在上下文中注册为 Bean 的BeanFactoryPostProcessor。
                1.执行完程序需要提供的BeanFactoryPostProcessor之后会调用clearMetadataCache
                2.会根据是否冻结去判断是否要获取到最新的BeanDefinition
                3.如果没有冻结那么则会去进行合并动作(beanDefinitionMap和MergeBeanDefinitionMap)
                4.注意:这个方法会将当前用户自定义注册的BeanFactoryPostProcessor进行实例化,并且进行合并操作,但是只会进行一次合并,为什么呢?
                5.可以看到在AbstractBeanFactory中的getMergedLocalBeanDefinition()方法中会当前的BD进行判断,是否需要进行合并
                6.那么第一次进来他肯定是需要合并的,但是后面就不会有合并的动作了
                7.而我们自己实现了BeanFactoryPostProcessor接口并且取出一个Bean对其进行了修改的话,在这个方法是不生效的
                 */
                invokeBeanFactoryPostProcessors(beanFactory);
                System.out.println("....");
                /*Register bean processors that intercept bean creation.
                注册拦截 Bean 创建的 Bean 处理器。
                1.获取BeanDefinition
                2.由于前面invokeBeanFactoryPostProcessors的判断在这里会获取到最新的BD在这里就可以进行合并
                 */
                registerBeanPostProcessors(beanFactory);
                // Initialize message source for this context. 初始化此上下文的消息源。
                initMessageSource();
                // Initialize event multicaster for this context. 为此上下文初始化事件多播程序。
                initApplicationEventMulticaster();
                // Initialize other special beans in specific context subclasses. 在特定上下文子类中初始化其他特殊 bean。
                onRefresh();
                // Check for listener beans and register them. 检查侦听器豆并注册它们。
                registerListeners();
                // Instantiate all remaining (non-lazy-init) singletons. 实例化所有剩余(非惰性初始化)单例。
                finishBeanFactoryInitialization(beanFactory);
                // Last step: publish corresponding event. 最后一步:发布相应的事件。
                finishRefresh();
            }
            catch (BeansException ex) {
                if (logger.isWarnEnabled()) {
                    logger.warn("Exception encountered during context initialization - " + "cancelling refresh attempt: " + ex);
                }
                // Destroy already created singletons to avoid dangling resources. 销毁已创建的单例以避免悬而未决的资源。
                destroyBeans();
                // Reset 'active' flag. 重置“活动”标志。
                cancelRefresh(ex);
                // Propagate exception to caller. 将异常传播给调用方。
                throw ex;
            }
            finally {
                // Reset common introspection caches in Spring's core, since we
                // might not ever need metadata for singleton beans anymore...
                // 重置 Spring 核心中的常见内省缓存,因为我们可能不再需要单例 bean 的元数据......
                resetCommonCaches();
            }
        }
    }
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
    PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());
    // Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
    // (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
    if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
        beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
        beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    }
}
public static void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {
        // Invoke BeanDefinitionRegistryPostProcessors first, if any.
        // 首先调用 BeanDefinitionRegistryPostProcessor(如果有)。
        Set<String> processedBeans = new HashSet<>();

        if (beanFactory instanceof BeanDefinitionRegistry) {
            BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
            List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
            List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();
            for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
                if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
                    BeanDefinitionRegistryPostProcessor registryProcessor = (BeanDefinitionRegistryPostProcessor) postProcessor;
                    registryProcessor.postProcessBeanDefinitionRegistry(registry);
                    registryProcessors.add(registryProcessor);
                }
                else {
                    regularPostProcessors.add(postProcessor);
                }
            }

            // Do not initialize FactoryBeans here: We need to leave all regular beans
            // uninitialized to let the bean factory post-processors apply to them!
            // Separate between BeanDefinitionRegistryPostProcessors that implement
            // PriorityOrdered, Ordered, and the rest.
            List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();

            // First, invoke the BeanDefinitionRegistryPostProcessors that implement PriorityOrdered.
            String[] postProcessorNames =
                    beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
            for (String ppName : postProcessorNames) {
                if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
                    currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                    processedBeans.add(ppName);
                }
            }
            sortPostProcessors(currentRegistryProcessors, beanFactory);
            registryProcessors.addAll(currentRegistryProcessors);
            //完成扫描
            invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
            currentRegistryProcessors.clear();

            // Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
            postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
            for (String ppName : postProcessorNames) {
                if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
                    currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                    processedBeans.add(ppName);
                }
            }
            sortPostProcessors(currentRegistryProcessors, beanFactory);
            registryProcessors.addAll(currentRegistryProcessors);
            invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
            currentRegistryProcessors.clear();

            // Finally, invoke all other BeanDefinitionRegistryPostProcessors until no further ones appear.
            boolean reiterate = true;
            while (reiterate) {
                reiterate = false;
                postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
                for (String ppName : postProcessorNames) {
                    if (!processedBeans.contains(ppName)) {
                        currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                        processedBeans.add(ppName);
                        reiterate = true;
                    }
                }
                sortPostProcessors(currentRegistryProcessors, beanFactory);
                registryProcessors.addAll(currentRegistryProcessors);
                invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
                currentRegistryProcessors.clear();
            }

            // Now, invoke the postProcessBeanFactory callback of all processors handled so far.
            // 现在,调用到目前为止处理的所有处理器的 postProcessBeanFactory 回调。
            invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
            invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
        }
        else {
            // Invoke factory processors registered with the context instance.
            // 调用在上下文实例中注册的工厂处理器。
            invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
        }

        // Do not initialize FactoryBeans here: We need to leave all regular beans
        // uninitialized to let the bean factory post-processors apply to them!
        // 不要在这里初始化 FactoryBeans:我们需要让所有常规 bean 未初始化,让 bean Factory 后处理器应用于它们!
        String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);
        // Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
        // Ordered, and the rest.
        // 在实现 PriorityOrdered、Ordered 和其余处理器的 BeanFactoryPostProcessor 之间分开。
        List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
        List<String> orderedPostProcessorNames = new ArrayList<>();
        List<String> nonOrderedPostProcessorNames = new ArrayList<>();
        for (String ppName : postProcessorNames) {
            if (processedBeans.contains(ppName)) {
                // skip - already processed in first phase above
                // 跳过 - 已在上述第一阶段处理
            }
            else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
                priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
            }
            else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
                orderedPostProcessorNames.add(ppName);
            }
            else {
                nonOrderedPostProcessorNames.add(ppName);
            }
        }

        // First, invoke the BeanFactoryPostProcessors that implement PriorityOrdered.
        // 首先,调用实现 PriorityOrdered 的 BeanFactoryPostProcessor。
        sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
        invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

        // Next, invoke the BeanFactoryPostProcessors that implement Ordered.
        // 接下来,调用实现 Ordered 的 BeanFactoryPostProcessor。
        List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
        for (String postProcessorName : orderedPostProcessorNames) {
            orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
        }
        sortPostProcessors(orderedPostProcessors, beanFactory);
        invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

        // Finally, invoke all other BeanFactoryPostProcessors.
        // 最后,调用所有其他 BeanFactoryPostProcessor。
        List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
        for (String postProcessorName : nonOrderedPostProcessorNames) {
            nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
        }
        //这个方法执行程序员自定义的BeanFactoryPostProcessor
        invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);

        // Clear cached merged bean definitions since the post-processors might have
        // modified the original metadata, e.g. replacing placeholders in values...
        // 清除缓存的合并Bean定义(mergeBDMap)
        // 清除allBeanNamesByType缓存
        // 因为后处理器可能已经修改了原始元数据,例如替换值中的占位符......
        beanFactory.clearMetadataCache();
    }
private static void invokeBeanDefinitionRegistryPostProcessors(
            Collection<? extends BeanDefinitionRegistryPostProcessor> postProcessors,
            BeanDefinitionRegistry registry) {
        for (BeanDefinitionRegistryPostProcessor postProcessor : postProcessors) {
            postProcessor.postProcessBeanDefinitionRegistry(registry);
        }
    }

点进去后发现是一个接口,我们要看的是ConfigurationClassPostProcessor这个实现类。

public interface BeanDefinitionRegistryPostProcessor extends BeanFactoryPostProcessor {

    /**
     * Modify the application context's internal bean definition registry after its
     * standard initialization. All regular bean definitions will have been loaded,
     * but no beans will have been instantiated yet. This allows for adding further
     * bean definitions before the next post-processing phase kicks in.
     * @param registry the bean definition registry used by the application context
     * @throws org.springframework.beans.BeansException in case of errors
     */
    void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException;
}
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
    int registryId = System.identityHashCode(registry);
    if (this.registriesPostProcessed.contains(registryId)) {
        throw new IllegalStateException("postProcessBeanDefinitionRegistry already called on this post-processor against " + registry);
    }
    if (this.factoriesPostProcessed.contains(registryId)) {
        throw new IllegalStateException("postProcessBeanFactory already called on this post-processor against " + registry);
    }
    this.registriesPostProcessed.add(registryId);
    processConfigBeanDefinitions(registry);
}
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
        List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
        String[] candidateNames = registry.getBeanDefinitionNames();

        for (String beanName : candidateNames) {
            BeanDefinition beanDef = registry.getBeanDefinition(beanName);
            if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
                if (logger.isDebugEnabled()) {
                    logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
                }
            }
            else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
                configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
            }
        }

        // Return immediately if no @Configuration classes were found
        if (configCandidates.isEmpty()) {
            return;
        }

        // Sort by previously determined @Order value, if applicable
        configCandidates.sort((bd1, bd2) -> {
            int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
            int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
            return Integer.compare(i1, i2);
        });

        // Detect any custom bean name generation strategy supplied through the enclosing application context
        SingletonBeanRegistry sbr = null;
        if (registry instanceof SingletonBeanRegistry) {
            sbr = (SingletonBeanRegistry) registry;
            if (!this.localBeanNameGeneratorSet) {
                BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
                if (generator != null) {
                    this.componentScanBeanNameGenerator = generator;
                    this.importBeanNameGenerator = generator;
                }
            }
        }

        if (this.environment == null) {
            this.environment = new StandardEnvironment();
        }

        // Parse each @Configuration class
        ConfigurationClassParser parser = new ConfigurationClassParser(
                this.metadataReaderFactory, this.problemReporter, this.environment,
                this.resourceLoader, this.componentScanBeanNameGenerator, registry);

        Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
        Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
        do {
            parser.parse(candidates);
            parser.validate();

            Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
            configClasses.removeAll(alreadyParsed);

            // Read the model and create bean definitions based on its content
            if (this.reader == null) {
                this.reader = new ConfigurationClassBeanDefinitionReader(
                        registry, this.sourceExtractor, this.resourceLoader, this.environment,
                        this.importBeanNameGenerator, parser.getImportRegistry());
            }
            this.reader.loadBeanDefinitions(configClasses);
            alreadyParsed.addAll(configClasses);

            candidates.clear();
            if (registry.getBeanDefinitionCount() > candidateNames.length) {
                String[] newCandidateNames = registry.getBeanDefinitionNames();
                Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
                Set<String> alreadyParsedClasses = new HashSet<>();
                for (ConfigurationClass configurationClass : alreadyParsed) {
                    alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
                }
                for (String candidateName : newCandidateNames) {
                    if (!oldCandidateNames.contains(candidateName)) {
                        BeanDefinition bd = registry.getBeanDefinition(candidateName);
                        if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
                                !alreadyParsedClasses.contains(bd.getBeanClassName())) {
                            candidates.add(new BeanDefinitionHolder(bd, candidateName));
                        }
                    }
                }
                candidateNames = newCandidateNames;
            }
        }
        while (!candidates.isEmpty());

        // Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
        if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
            sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
        }

        if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
            // Clear cache in externally provided MetadataReaderFactory; this is a no-op
            // for a shared cache since it'll be cleared by the ApplicationContext.
            ((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
        }
    }

可以看到在上述代码中高亮的部分是在它new了一个ConfigurationClassBeanDefinitionReader(),并且在该类的内部实例化了:componentScanBeanNameGenerator。

再看到该类顶上的字段:private BeanNameGenerator componentScanBeanNameGenerator = AnnotationBeanNameGenerator.INSTANCE;

spring是在这里给了它一个默认的BeanNameGenerator。

  1. 在spring在执行refare()方法,它会在invokeBeanFactoryPostProcessors(beanFactory)方法中执行后置处理器,当然我们现在说的是spring内置的后置处理器,其中就有BeanName的生成器的实例化工作,具体的细节不说了,大概的步骤就是他会一个判断当前是否有BeanNameGenerator,那么对于spring第一次的刷新的话肯定是没有的,所以它会去实例化内置的BeanNameGenerator,然后将他的实例对象,赋值给一个对象,再通过这个对象在调用方法进行BeanName生成的时候通过构造器的方法来获取。

下面来说一下spring对于指定包的扫描是怎么回事:

  1. context中有一个scan()方法,在参数可以中指定扫描的包
public class AnnotationConfigReaderTest {
    public static void main(String[] args) {
        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();
        context.scan("com.lukp.AnnotationBeanDefinitionReader.bean");
        context.refresh();
        String[] beanDefinitionNames = context.getBeanDefinitionNames();
        for (String beanDefinitionName : beanDefinitionNames) {
            System.out.println("beanDefinitionName:"+beanDefinitionName);
        }
    }
}
@Override
public void scan(String... basePackages) {
    Assert.notEmpty(basePackages, "At least one base package must be specified");
    this.scanner.scan(basePackages);
}
public int scan(String... basePackages) {
        //获取到当前所有的BeanDefinition的总数
        int beanCountAtScanStart = this.registry.getBeanDefinitionCount();
        doScan(basePackages);
        // Register annotation config processors, if necessary. 如有必要,注册注释配置处理器。
        if (this.includeAnnotationConfig) {
            AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);
        }
        return (this.registry.getBeanDefinitionCount() - beanCountAtScanStart);
    }
protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
        Assert.notEmpty(basePackages, "At least one base package must be specified");
        Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<>();
        for (String basePackage : basePackages) {
            //完成了扫描(class文件-->>BeanDefinition)
            Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
            for (BeanDefinition candidate : candidates) {
                ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
                candidate.setScope(scopeMetadata.getScopeName());
                String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
                if (candidate instanceof AbstractBeanDefinition) {
                    postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
                }
                if (candidate instanceof AnnotatedBeanDefinition) {
                    AnnotationConfigUtils.processCommonDefinitionAnnotations(
                            (AnnotatedBeanDefinition) candidate
                    );
                }
                if (checkCandidate(beanName, candidate)) {
                    BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
                    definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(
                            scopeMetadata,
                            definitionHolder,
                            this.registry
                    );
                    beanDefinitions.add(definitionHolder);
                    registerBeanDefinition(definitionHolder, this.registry);
                }
            }
        }
        return beanDefinitions;
    }
public Set<BeanDefinition> findCandidateComponents(String basePackage) {
        if (this.componentsIndex != null && indexSupportsIncludeFilters()) {
            return addCandidateComponentsFromIndex(this.componentsIndex, basePackage);
        } else {
            return scanCandidateComponents(basePackage);
        }
    }
private Set<BeanDefinition> scanCandidateComponents(String basePackage) {
        Set<BeanDefinition> candidates = new LinkedHashSet<>();
        try {
            //拼接PackageUrl路径
            String packageSearchPath =
                    ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX +
                            resolveBasePackage(basePackage) +
                            '/' +
                            this.resourcePattern;
            //开始用spring自己使用的流工具完成文件的扫描,得到指定包中的文件
            Resource[] resources = getResourcePatternResolver().getResources(packageSearchPath);
            boolean traceEnabled = logger.isTraceEnabled();
            boolean debugEnabled = logger.isDebugEnabled();
            for (Resource resource : resources) {
                if (traceEnabled) {
                    logger.trace("Scanning " + resource);
                }
                try {
                    //这里为什么spring不转换为class?
                    /*原因:
                     * 1.由于有些类中是会存在静态代码块,对于用户而言这些静态代码块是按需加载的,当我不需要的时候我就不会去加载
                     * 2.那如果在这里spring使用class的形式来提前或者是自说自话的进行class加载,那是不是就间接的把class中static代码中的内容加载了
                     * 3.是不是对spring的使用者很不友好
                     * 4.那么当前,我们对于metadataReader就可以理解spring为了防止上述的情况所创建的"spring版本的class"
                     */
                    MetadataReader metadataReader = getMetadataReaderFactory().getMetadataReader(resource);
                    //判断这个类是否符合要求,扫描器有属于自己的规则,isCandidateComponent(metadataReader)这个方法就是判断当前的metadataReader是否符合spring对于scanner的要求
                    /*
                     * 1.当前的被加载的metadataReader是否要被剔除
                     * 2.当前的metadataReader是否需要被转化
                     * 3.由于扫描器没有添加excludeFilters所以当前isCandidateComponent方法中根本不会去过滤这个集合中的元素
                     * 4.是否需要转化,扫描器添加了includeFilters 3个过滤规则
                     */
                    //总结:一句话,spring得到包路径后,会去扫描,得到属于spring特有的Class,然后判断是否有3个过滤规则,有就转化为BeanDefinition
                    if (isCandidateComponent(metadataReader)) {
                        ScannedGenericBeanDefinition sbd = new ScannedGenericBeanDefinition(metadataReader);
                        sbd.setSource(resource);
                        if (isCandidateComponent(sbd)) {
                            if (debugEnabled) {
                                logger.debug("Identified candidate component class: " + resource);
                            }
                            candidates.add(sbd);
                        } else {
                            if (debugEnabled) {
                                logger.debug("Ignored because not a concrete top-level class: " + resource);
                            }
                        }
                    } else {
                        if (traceEnabled) {
                            logger.trace("Ignored because not matching any filter: " + resource);
                        }
                    }
                } catch (FileNotFoundException ex) {
                    if (traceEnabled) {
                        logger.trace("Ignored non-readable " + resource + ": " + ex.getMessage());
                    }
                } catch (Throwable ex) {
                    throw new BeanDefinitionStoreException(
                            "Failed to read candidate component class: " + resource, ex);
                }
            }
        } catch (IOException ex) {
            throw new BeanDefinitionStoreException("I/O failure during classpath scanning", ex);
        }
        return candidates;
    }
protected boolean isCandidateComponent(MetadataReader metadataReader) throws IOException {
        //判断当前的metadataReader是否是在excludeFilters中的一个元素
        for (TypeFilter tf : this.excludeFilters) {
            if (tf.match(metadataReader, getMetadataReaderFactory())) {
                return false;
            }
        }
        //判断当前的metadataReader是否是在includeFilters中的一个元素
        for (TypeFilter tf : this.includeFilters) {
            if (tf.match(metadataReader, getMetadataReaderFactory())) {
                return isConditionMatch(metadataReader);
            }
        }
        return false;
    }
public ClassPathBeanDefinitionScanner(
            BeanDefinitionRegistry registry,
            boolean useDefaultFilters,
            Environment environment,
            @Nullable ResourceLoader resourceLoader) {
        Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
        this.registry = registry;
        if (useDefaultFilters) {
            //配置扫描器的过滤规则
            /*
             * 过滤规则是由两种过滤器来实现的:
             * 1.一个是includeFilters,一个是excludeFilters
             * 2.但是这个方法只对includeFilters进行过滤
             * 3.并且注册了三种includeFilters过滤规则:
             *      1.类上是否添加@Component注解
             *      2.类上是否添加@ManagedBean注解
             *      3.类上是否添加@Named注解
             */
            registerDefaultFilters();
        }
        setEnvironment(environment);
        setResourceLoader(resourceLoader);
    }
  1. 我们现在证明一下,上述代码是否正确,在A1类上添加@Named注解,你会并且调用getBeanDefinitionNames()方法来获取当前所有的BeanDefinitionName只会有a1这个BeanDefinition。
@Named
public class A1 implements BeanNameAware {
    public A1() {
        System.out.println("a1 create");
    }

    public static Object createB1() {
        return new B1();
    }

    @Override
    public void setBeanName(String name) {
        System.out.println("当前A1的名字:" + name);
    }
}
  1. 下面使用mybatis来证明,同时也说一下对于MyBatis是如何对spring进行扩展的。

AnnotationBeanDefinitionReader

  1. 上面的图重点在于spring是如何感知到MapperScannerRegistrar中的ImportBeanDefinitionRegistrar接口的实现并且进行最快速度的回调处理。
  2. 在spring中注册一个bean的方式有很多种:

    • xml配置扫描
    • context.register()
    • beanFactory.registerSingleton()
    • …..
  3. 但是我们现在是基于Annotation注解形式来完成,在平时的开发过程你会发现有很多的Config,这些配置类也会被实例化为一个Bean注入到单例池中,但是这种configBean和普通Bean的区别在于他们可能在上类上会有一些注解来指定某个组件的相对应的配置,比如指定当前组件需要被扫描的包的路径等等。

  4. 所以可以看到的是在AnnotationConfigApplicationContext(),这个类中会有这样的一个构造器:
public AnnotationConfigApplicationContext(Class<?>... componentClasses) {
        this();
        register(componentClasses);
        refresh();
    }
  1. 当你的传参是一个config类的话就会单独register(),说明这个config和其他普通的bean还是有些区别,那么到底有啥区别呢?
  2. 说到这里还是要提一下之前我们说的reader和scanner:从通过context注册一个bean的方法registerBean()开始。
context.registerBean();
  1. 进入到这个方法中你会发现它有多个重载方法,但是我们只需要进入这些重载方法都会有的一个方法registerBean()。
  2. 又会发现你想要进去的话,这个方法有两个实现:AnnotationConfigApplicationContext和GenericApplicationContext。
  3. 这次我们进入到GenericApplicationContext中来看:
public <T> void registerBean(@Nullable String beanName,
                             Class<T> beanClass,
                             @Nullable Supplier<T> supplier,
                             BeanDefinitionCustomizer... customizers) {
        ClassDerivedBeanDefinition beanDefinition = new ClassDerivedBeanDefinition(beanClass);
        if (supplier != null) {
            beanDefinition.setInstanceSupplier(supplier);
        }
        for (BeanDefinitionCustomizer customizer : customizers) {
            customizer.customize(beanDefinition);
        }
        String nameToUse = (beanName != null ? beanName : beanClass.getName());
        registerBeanDefinition(nameToUse, beanDefinition);
    }
  1. 通过上述代码你可以看到的是,它会先创建一个ClassDerivedBeanDefinition()类。
  2. 点进去看这个类,你会发现是ClassDerivedBeanDefinition()继承于RootBeanDefinition的,所以我们刚刚点到这个类上跳到的其实是这个类的构造器上,你会发现它实现父类也就是RootBeanDefinition的构造器上:
public ClassDerivedBeanDefinition(Class<?> beanClass) {
            super(beanClass);
    }
  1. 这个是再点进去到super去看一下RootBeanDefinition类中:
public RootBeanDefinition(@Nullable Class<?> beanClass) {
        super();
        setBeanClass(beanClass);
    }
  1. 再点setBeanClass()方法:
public void setBeanClass(@Nullable Class<?> beanClass) {
        this.beanClass = beanClass;
    }
  1. 这是一个赋值方法,但是你可以看一下他的赋值对象是谁:
@Nullable
private volatile Object beanClass;
  1. 是一个volatile修饰,类型为Object的字段。
  2. 并且在AnnotationConfigApplicationContext类中的构造器对于reader的赋值就是为 new AnnotatedBeanDefinitionReader(this);
  3. 其实上面说了这么多,总结一个道理就是,当我们register一个类到registerBean()方法中,就会被spring容器创建为一个RootBeanDefinition对象,上面对于该对象的描述很详细了,我就不说了。
  4. 总结一下reader他就是来处理在spring拥有注解能力之后,去解析类上注解的。

说了这么多我们总结一下AnnotationConfigApplicationContext()类初始化做了什么:

public AnnotationConfigApplicationContext() {
    this.reader = new AnnotatedBeanDefinitionReader(this);
    this.scanner = new ClassPathBeanDefinitionScanner(this);
}
  1. 首先会实例化两个渲染器,reader会对spring的组件进行增强,对加了特定的注解的类进行解析,还要扫描spring在后期实例化中在内部使用的一些bean,比如BeanFactoryPostPrpcessor对他们进行注册,而scanner主要是用来扫描程序员外部注册的bean,比如context.scan()。
  2. 这里稍微提一嘴就是通过注解和context.scan()两种方式来注册配置类的区别其实不大,但是一个是直接提供,但是一个是需要扫描。
    原文链接: https://juejin.cn/post/7383100103001374730

文章收集整理于网络,请勿商用,仅供个人学习使用,如有侵权,请联系作者删除,如若转载,请注明出处:http://www.cxyroad.com/17160.html

QR code
